Just ordered a festive 8-bit ray traced baubles custom sweater
BBC BASIC rendered festive knitwear another world first no one asked for courtesy @bbcmicrobot
@pikesley instant catchy theme tune
@bbcmicrobot @coprolite9000 Danielle, @quephird , I was thought this could be of interest. Happy Christmas Eve to you!
@bbcmicrobot I spent far too long trying to understand that ray trace program. Still don't get it, it's magic I guess?
@bbcmicrobot @nske @kweepa It loops over each pixel in the screen in turn and traces a ray for each - line 40 sets up the initial ray then line 50 traces it, testing if it hits the sphere, and if so calculates the reflection angle and loops to trace the reflected ray (via the GOTO50).
Line 60 handles the chequerboard - e.g. if you replace it with V=ABSV the ground is just an inverted version of the sky.
Line 70 sets the colour (with dithering in this version).
The main trick is that there's really only one sphere! It is at coordinates (I,I,I) (that's capital i). For each pixel, I is initially set to 1 if we're tracing the right half of the screen and -1 for the left, then the sign of I is flipped each time the ray reflects of the sphere (since it's not physically possible for a ray bouncing off one sphere to hit that same sphere again without reflecting off the other sphere first.
This one sphere trick can be extended to render more than just two spheres - e.g. I posted a version some time ago with a line of spheres where the coordinates of the sphere get incremented/decremented based on the sign of the direction of the reflected ray. I also have an unposted work in progress which just adds spheres top left and bottom right, but I've haven't yet got all the inter-sphere reflections working right.

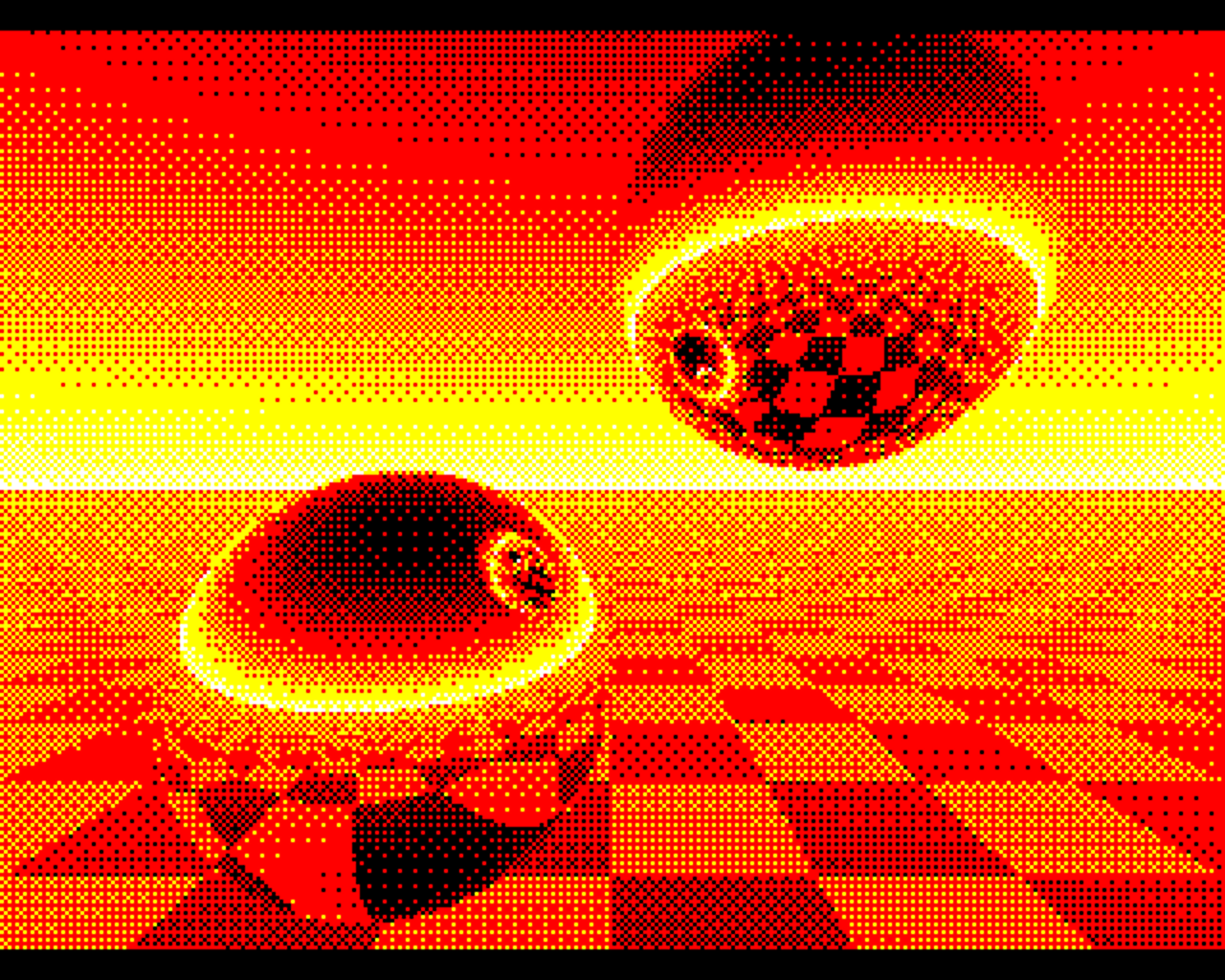

I ran @rheolism's program and got this.
Source: https://bbcmic.ro/?t=bdS1n #bbcbasic
@cyberspice @rheolism
Why is everyone hating on GOTO when just about every processor has unconditional JMPs?
@bbcmicrobot @coprolite9000 I would certainly order one
