It's always fun when people come and show us what they do with their Boxes.
Yesterday Dr Alex Ball from the Natural History Museum visited and brought his collection of pollens, insects, sand and sugar 3D prints.
He uses them with him Museum in a Box to explain microscopy and scale. 5 pence coins for scale

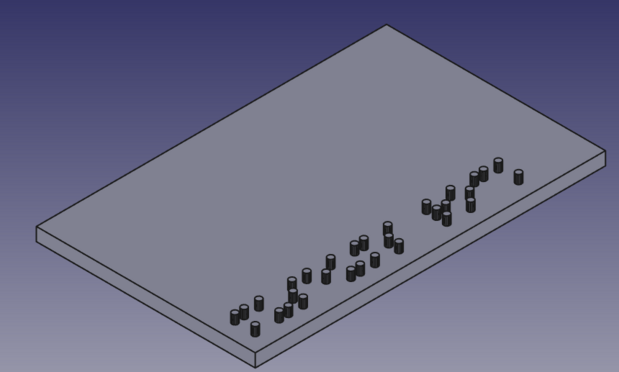

For #FreeCADFriday I've been doing a tiny bit of experimenting with the RNIB's braille font in FreeCAD to see how easy it would be to create the sort of "cards" that Dr Alex Ball has been making for his visually-impaired @museuminabox
Initial experiments look promising.
@amcewen @museuminabox
(the braille text in the above image says "museum rock")
@floppyplopper @museuminabox oh that's super interesting!
I wasn't paying too much attention to the text and focusing on how well the text extruded, etc.
I thought I saw something when finding the font about not being able to just type things normally and have it be legible as braille. Is that not the case? I mean, I typed "museums rock" just to get some text, and you can read it
@amcewen @museuminabox
oops, it does say "museums rock" not museum rock.
how does your font handle "with", "and" and "of".
That's a good start. They do look both a little tall and could also use some rounding over on the top edges so fingers can smoothly run over them rather than get hung up on sharp edges. The specs for braille can be found here:
https://brailleauthority.org/size-and-spacing-braille-characters
@ducksauz @museuminabox yep, definitely just a start, but will be much improved thanks to the feedback and pointers I've got in this thread
The height was very much just plucked out of the air to see it it extruded nicely, and trivial to fix. I think that guide will let me work out font-size and the like too, which was another random choice so far.
Rounding the tops is a good call. Will have to see if there's an easier way in FreeCAD to select all the tops without doing them individually
@amcewen @museuminabox
Hi, this is really neat! Reminded me of this article discussing the print orientation for readability and I guess tactile esthetics of 3D printed braille.
https://dl.acm.org/doi/10.1145/3613904.3642719
@amcewen @museuminabox
Also this guide about best practices seems really well thought out:
https://printdisability.org/guidelines/3d-prints/
@amcewen @museuminabox
And I had this page open, which kind of dovetails into the subject at hand: https://imagetostl.com/
