MCQN Ltd @MCQN_Ltd@social.mcqn.com

Thanks to @huffeec our website now has a write-up of the Bluetooth LED bike game we built with #PelotonLiv

https://mcqn.com/ibal251/

mcqn.comLightbeamAn application of the My Bike’s Got LED boards to use them in interactive light-up bollards for bike workshops.The Lightbeam was developed as part of a workshop at Kingsley Road School to promote a...

#ibal251 #weeknotes #esp32c3

Adrian McEwen @amcewen

Working up to tackling the emails I need to send with something more fun. A bit of #FreeCADFriday work

Which is also work, so useful to do, but I'm very aware that I'm procrastinating with it

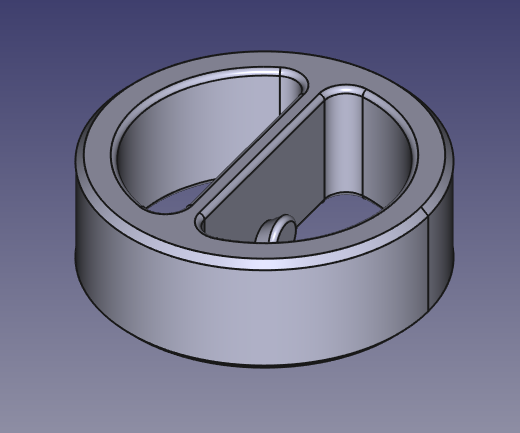

Render in FreeCAD of a 3D design. It's a ring with a bridge across its diameter. Just visible on one side of the bridge is an ever-so-slightly-flared peg, and the edges of all of it are chamfered and filleted to smooth it off a touch.

It's the mounting and centering piece for the LED strip in one of @MCQN_Ltd@social.mcqn.com's Lightbeam LED tubes

#weeknotes #ibal251

Adrian McEwen @amcewen

A bit of #FreeCADFriday action: reworking the sleeve for @MCQN_Ltd's RGB LED bollards so we can (a) switch the 3D printing orientation so the stress lines aren't along the printing layers and (b) it will be removable for when we want to mount the bollard on the back of a trike for another music video (or something)

A render of half a sleeve to clamp over a cylinder. It flares out at the base and has four bolt holes in it - two circular to take the bolts and two with a hexagonal recess to capture a nut.

#weeknotes #ibal251 #CAD
