Public
MCQN Ltd

We've got the trinocular microscope out today while we debug the latest production batch of Vicino NFC boards

Looking down on a white desk that has a microscope on it and a laptop to the right. The laptop screen is showing a picture of the view from the microscope and arrayed around the scope are some circuit boards, forceps, solder flux pen and cotton bud
#weeknotes#ibal243#NFC
Adrian McEwen

@MCQN_Ltd Probably shouldn't have taken that photo while it's looking at my failed attempt at some hot-air rework on that board 🤣

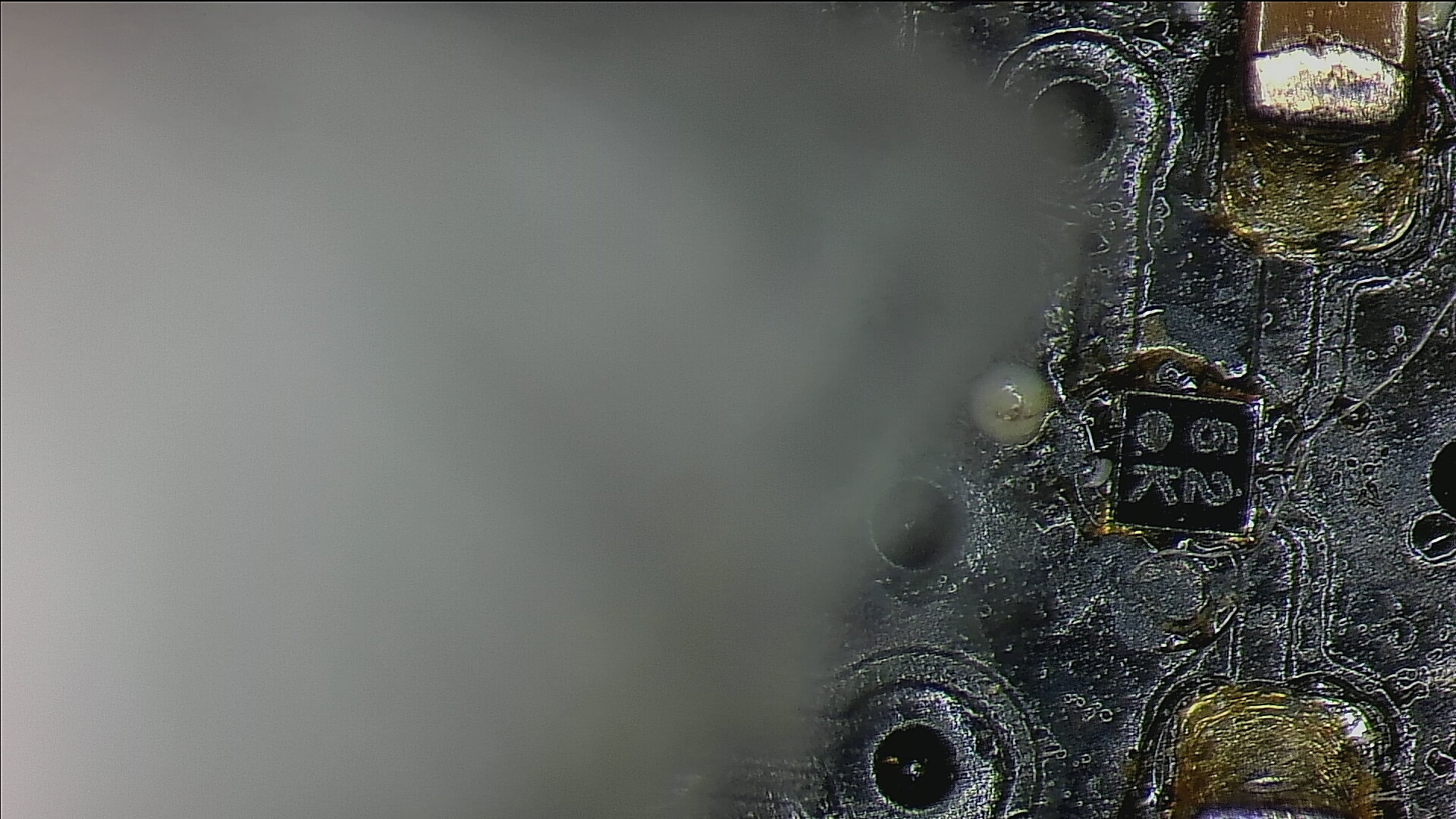

At least that one wasn't working before I attacked it. Those varicaps - the small black square with "52*K" printed on it - are tiny though. I've left the cleaning cotton bud in the attached photo for scale 😆

View of part of a circuit board through a microscope. The main part visible on the board is a small black square with a couple of traces leading to it. What looks like a large white cloud is obscuring most of the view.
#weeknotes
Aug 16, 2024, 12:48 PM·Public·Web
0boosts·0favorites
