Adrian McEwen

Spent the evening levelling up my skills to model a stereo pot, including forays into shapebinders and the drafting workbench to create an array of parts.

Slightly disappointed that the final step needed to export it to merged all the bodies to a single one and so discarded all the different materials/colours I'd carefully constructed beforehand 🤣

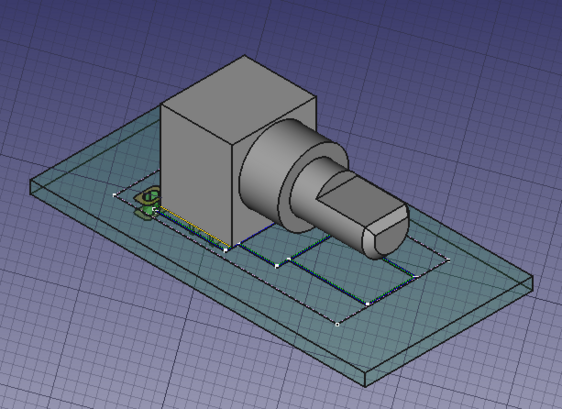

Render of a 3D model of a potentiometer on a circuit board. The potentiometer is all a single grey colour.
#weeknotes#ibal249
Adrian McEwen

Still, it's imported nicely into and should let me get on with designing the case for it now.

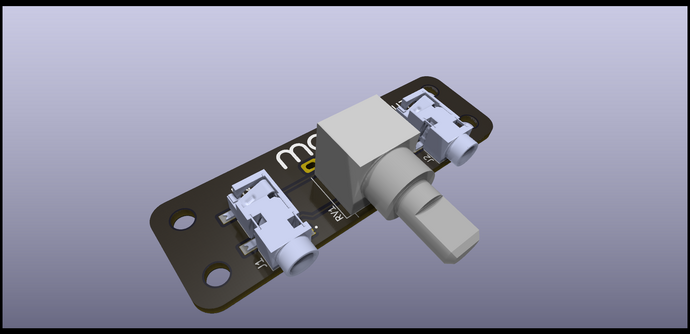

Rendering of a thin PCB which has a stereo potentiometer on it, flanked with two 3.5mm sockets. The edge of the @MCQN_Ltd@social.mcqn.com logo is visible on the silkscreen and there are mounting holes at each corner of the PCB
#weeknotes#ibal249#FreeCAD
