Today I am mostly antenna tuning.

Here's my macgyvered RF probe and test setup

An oscilloscope probe with its ground lead looped into a coil and clipped onto the probe tip

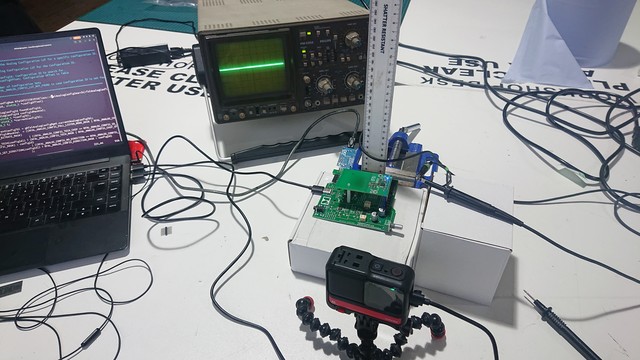

A white workbench with a laptop, oscilloscope, camera and a green circuit board on it. The camera is pointing at the circuit board and the oscilloscope screen and a ruler which is clamped to allow measurements of height above the circuit board
